| Place of Origin: | China |
| Hàng hiệu: | Xinding |
| Chứng nhận: | CE / ISO9001 |
| Model Number: | XDM-G253 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Giá bán: | Negotiable |
| Packaging Details: | Standard heat treated wooden case |
| Delivery Time: | 15 days |
| Điều khoản thanh toán: | TT LC |
| Supply Ability: | 20 sets per month |
| Wire diameter: | 3.00-8.00mm | Power: | 15kw |
|---|---|---|---|
| Weight: | 2300kg | Control: | CNC |
| Precison: | High | Package: | Wooden case |
| Điểm nổi bật: | spring grinding machine,spring end grinder |
||

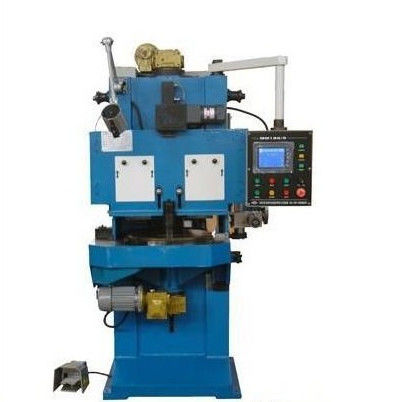

CNC controlled spring end grinding machine for two heads of prings
Technical Parameter:
| Gringding Wheel |
Ф420*50mm |
|
Feeding Plate |
Ф580mm |
|
MAX.O.D |
Ф5-80mm |
|
Wire Diameter |
Ф 3.00-8.00mm |
|
Spring Height |
5-230mm |
|
Power |
15KW |
|
Overall Dimension |
L1700*W1650*H2450 |
|
Weight |
2300KG |
Details:
1 Vertical double surface grinding machine with CNC control.
This machine is equipped with Mitsubishi CNC system to control grinding process on both ends of springs simultaneously.
2. For replacing is very suitable for high-precision grinding proposal.
