| Place of Origin: | China |
| Hàng hiệu: | Xinding |
| Chứng nhận: | CE / ISO9001 |
| Model Number: | XDM-50-2E |
| Minimum Order Quantity: | 1 set |
|---|---|
| Giá bán: | Negotiable |
| Packaging Details: | Standard heat treated wooden case |
| Delivery Time: | 15 days |
| Điều khoản thanh toán: | TT LC |
| Supply Ability: | 20 sets per month |
| Wire diameter: | 0.30-2.00mm | Power: | 2kw |
|---|---|---|---|
| Weight: | 800kg | Package:: | Wooden case |
| Control:: | CNC | Precision: | High |
| Điểm nổi bật: | spring grinding machine,spring end grinder |
||

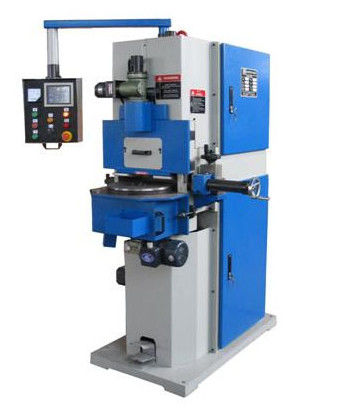

CNC controlled spring end grinding machine for grinding all types of springs
Technical Parameter:
| 1.Gringding Wheel |
Ф175*50mm |
|
2. Feeding Plate |
Ф320mm |
|
3. MAX.O.D |
Ф3-30mm |
|
4. Wire Diameter |
Ф 0.3-2mm |
|
5. Spring Height |
5-50mm |
|
6. Power |
2KW |
|
7. Overall Dimension |
L800*W1100*H1700 mm |
|
8. Weight |
800KG |
Details:
Vertical double surface grinding machine with CNC control.
This machine is equipped with Mitsubishi CNC system to control grinding process on both ends of springs simultaneously.
Feeding speed of grinding heads is adjustable on the basis of pressure from springs.
Fine grinding process is available,as well as compensation function on grinding wheels. The grinding process is operated manually and automatically.
For replacing is very suitable for high-precision grinding proposal.
