| Place of Origin: | China |
| Hàng hiệu: | XD |
| Chứng nhận: | CE / ISO9001 |
| Model Number: | XD530 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Giá bán: | negotiable |
| Packaging Details: | Standard heat treated wooden case |
| Delivery Time: | 15 days |
| Điều khoản thanh toán: | TT LC |
| Supply Ability: | 30 sets per month |
| Operation:: | Automatic | Weight:: | 150kg |
|---|---|---|---|
| Power ac:: | 3-phase 380v 50hz | Temperature:: | 500 degree |
| Application:: | heating up all kinds of springs | Transporting belt:: | Stainless steel |
| Làm nổi bật: | continuous furnace heat treatment,hardening tempering furnace |
||

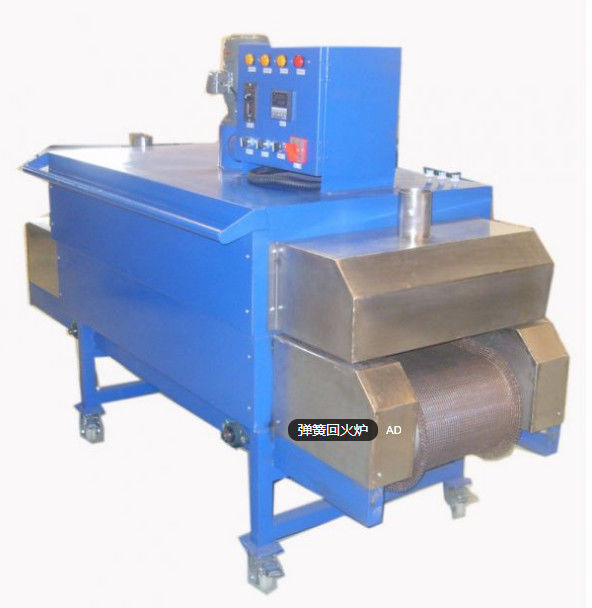

XDR520-690 Continuous tempering furncace for heat treating all models of springs
Technical specification:
|
Model |
Max temperature |
Power |
Temperature |
L*W*H |
L*W*H |
|
XDR-520 |
500℃ |
30KW |
2 |
2×0.5×0.09 |
3.4×1.1×1.9 |
|
XDR-530 |
40KW |
3 |
3×0.5×0.12 |
5.1×1.1×1.9 |
|
|
XDR-630 |
48KW |
3 |
3×0.6×0.12 |
5.1×1.2×1.9 |
|
|
XDR-540 |
55 KW |
4 |
4.5×0.5×0.12 |
6.7×1.1×1.9 |
|
|
XDR-640 |
65 KW |
4 |
4.5×0.6×0.12 |
6.7×1.2×1.9 |
|
|
XDR-740 |
65 KW |
3 |
4×0.7×0.12 |
6.1×1.3×1.9 |
|
|
XDR-840 |
93KW |
4 |
4.5×0.8×0.12 |
7×1.4×1.9 |
|
|
XDR-650 |
78 KW |
4 |
5×0.6×0.15 |
7.2×1.2×1.9 |
|
|
XDR-670 |
93 KW |
5 |
7×0.6×0.2 |
9.2×1.2×1.9 |
|
|
XDR-590 |
120 KW |
5 |
9×0.5×0.2 |
11×1.3×1.6 |
|
|
XDR-690 |
137 KW |
5 |
9×0.6×0.2 |
11×1.4×1.6 |
Details:
1.The continuous furnaces are produced by adopting advanced technologies abroad.
Main features include precision temperature control, energy saving, and less pollution.
2. Work pieces can be produced constantly with the furnace in the production line.
3. Our furnaces are exported to Europe, America and Southeast Asia.
