| Place of Origin: | China |
| Hàng hiệu: | XD |
| Chứng nhận: | CE / ISO9001 |
| Model Number: | XD690 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Giá bán: | negotiable |
| Packaging Details: | Standard heat treated wooden case |
| Delivery Time: | 15 days |
| Điều khoản thanh toán: | TT LC |
| Supply Ability: | 30 sets per month |
| Operation:: | Automatic | Weight:: | 2000kg |
|---|---|---|---|
| Power ac:: | 3-phase 380v 50hz | Working temperature:: | 500 degree |
| Transporting belt:: | Stainless steel | Package:: | Wooden case |
| Làm nổi bật: | continuous furnace heat treatment,hardening tempering furnace |
||

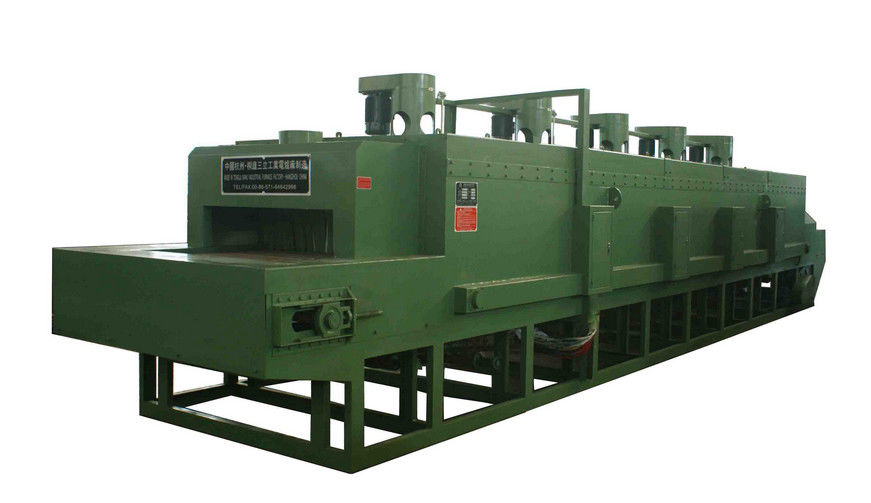

XDR520-690 Continuous tempering furncace for heat processing all designs of springs
Technical specification:
Model | Max temperature | Power | Temperature | L*W*H | L*W*H |
XDR-520 | 500℃ | 30KW | 2 | 2×0.5×0.09 | 3.4×1.1×1.9 |
XDR-530 | 40KW | 3 | 3×0.5×0.12 | 5.1×1.1×1.9 | |
XDR-630 | 48KW | 3 | 3×0.6×0.12 | 5.1×1.2×1.9 | |
XDR-540 | 55 KW | 4 | 4.5×0.5×0.12 | 6.7×1.1×1.9 | |
XDR-640 | 65 KW | 4 | 4.5×0.6×0.12 | 6.7×1.2×1.9 | |
XDR-740 | 65 KW | 3 | 4×0.7×0.12 | 6.1×1.3×1.9 | |
XDR-840 | 93KW | 4 | 4.5×0.8×0.12 | 7×1.4×1.9 | |
XDR-650 | 78 KW | 4 | 5×0.6×0.15 | 7.2×1.2×1.9 | |
XDR-670 | 93 KW | 5 | 7×0.6×0.2 | 9.2×1.2×1.9 | |
XDR-590 | 120 KW | 5 | 9×0.5×0.2 | 11×1.3×1.6 | |
XDR-690 | 137 KW | 5 | 9×0.6×0.2 | 11×1.4×1.6 |
Details:
The continuous furnaces are produced by adopting advanced technologies abroad.
Main features include precision temperature control, energy saving, and less pollution.
1. It take about 5-120 minutes from the temperature of 50-500℃ (adjustable)to complete heat treatment of the work pieces(e.g spring, chain, standard metal pieces, hardware pieces)which are put into the entrance of the furnace on the stainless steel belt.
2. The furnaces are equipped with air blower to keep the temperature ever.
3. The power of the furnace range from 8 to 137 kw.
