| Place of Origin: | China |
| Hàng hiệu: | XD |
| Chứng nhận: | CE / ISO9001 |
| Model Number: | XD-208 |
| Minimum Order Quantity: | 1set |
|---|---|
| Giá bán: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 10 working days after receiving your payment |
| Điều khoản thanh toán: | TT LC |
| Supply Ability: | 20 sets per month |
| Product Name: | 2 axis CNC spring coiling machine | Feed Axis: | 750w |
|---|---|---|---|
| Wire Diameter: | 0.1--0.8mm | Cam Axis: | 750w |
| MAX.O.D: | 20mm | Max speed: | 500pcs/min |
| Optional tool:: | Spring length gauge and torsional spring device | ||
| Điểm nổi bật: | spring coiler,spring coiling machinery |
||

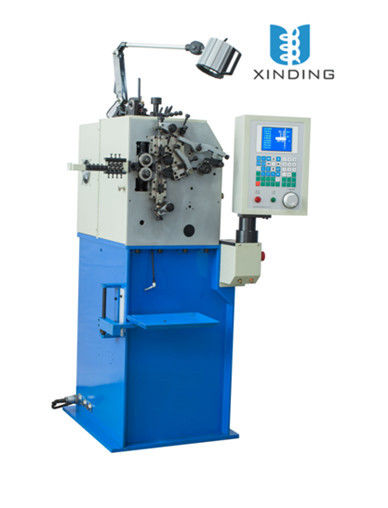

CNC Spring Coil Machine Spring Coiling Machinery With Fast Speed
208 three axis cnc spring coiling machine for the production of compression springs
Technical Parameter:
|
Model: |
XD-208 |
|
Wire diameter: |
φ0.10～0.80mm |
|
Axes: |
2 axes |
|
Maximum Outside Diameter: |
20mm |
|
Maximum Feeding Length: |
unlimited |
|
Maximum Manufacture Speed: |
550pcs/min |
|
Feed Speed |
1200m/min |
|
Pitch Servo Motor: |
500W |
|
Wire Feed Servo Motor: |
1.0KW |
|
Cam Servo Motor: |
1.0KW |
|
Power AC: |
3-Phase 220V |
|
Dimensions (L*D*H): |
900X850X1600MM |
|
Wooden Case Dimensions |
1000x1050x1750mm |
|
Machine Weight: |
400Kg |
|
Gross Weights |
450Kg |
Details:
1. Two or three axis which can work in single-step or synchronously.
2. Equipped with right or left-handed winding blade rest.
3. Spring programs can be saved to the computers internal memory.
4. Computer interface displayed in Chinese and English makes the operation easy.
5. Can with torsion attachment and spring length guage.
Product Range:
This compression spring machine can make various compression springs, wire coil, oil seal springs,
battery springs, taper springs, double-taper springs, safe springs, clip spring as well as various
simple wire molding
Sample springs:
