| Place of Origin: | China |
| Hàng hiệu: | XD |
| Chứng nhận: | CE / ISO9001 |
| Model Number: | AZ-50 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Giá bán: | Negotiable |
| Packaging Details: | Standard heat treated wooden case |
| Delivery Time: | 7 week |
| Điều khoản thanh toán: | TT LC |
| Supply Ability: | 30 sets per month |
| Max stroke:: | 200mm | Speed:: | 1-300pcs/min |
|---|---|---|---|
| Package:: | Wooden case | Load:: | 50N |
| Weight:: | 20kgs | Power ac:: | 220v 50hz |
| Điểm nổi bật: | spring test machine,spring tester |
||

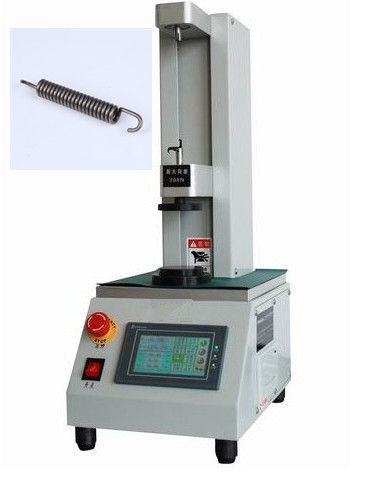

XD-AZ-50 spring testing machine with accurate printed recording for tensile force
Technical parameters:
|
1. Model |
XD-AZ-5 |
XD-AZ-20 |
XD-AZ-50 |
XD-AZ-100 |
|
2. Load |
5N |
20N |
50N |
100N |
|
3. Min load value |
0.0001N |
0.001N |
0.001N |
0.01N |
|
4. Unit |
N,g |
N, Kg,g |
||
|
5. Load precision |
±0.5% |
|||
|
6. Length precision |
0.02mm |
|||
|
7. Max stroke |
200mm |
|||
|
8. Speed |
1～300mm/min |
|||
|
9. Table diameter |
φ20mm |
φ60mm |
||
|
10. Manual movement value |
1mm,0.1mm,0.01mm |
|||
|
11. Testing choice |
compression or tension |
|||
|
12. Spring testing option |
1, testing load by setting length 2, testing load by setting deformation |
|||
|
13. Size |
220mm×330mm×500mm |
|||
|
14. Weight |
20kg |
|||
|
15. Power ac |
220V 0.5A |
|||
Main Applications;
The spring testing machine is mainly used to measure and analyze the mechanical performance ( tensile force, compressive force, displacement, and stiffness etc) of the springs ( cylinder spring, butterfly spring, tower-shaped spring, closing ring, flat spring, deformed spring and other precision spring).
Our advantages:
1. A complete production line from Design, Own Processing centre for spareparts & worktable, Importing Japan Sanyo and Yaskawa motors, Importing TaiWan Brand controlling system, Finishing operation, Inspection centre, Testing team and Professional vacuum packing with Fumigated wooden case.
2. A complete set of CNC Spring coiling machine & wire bending machine to processing the wire diameter from 0.15mm to 8.0mm, especially including the new technology of the Camless machine with wire rotation function and the applying of the Camera Spring Length Gauge on the Compression Spring Machine
3. Quality first, QA/QC is one of the most important departments in our company.
